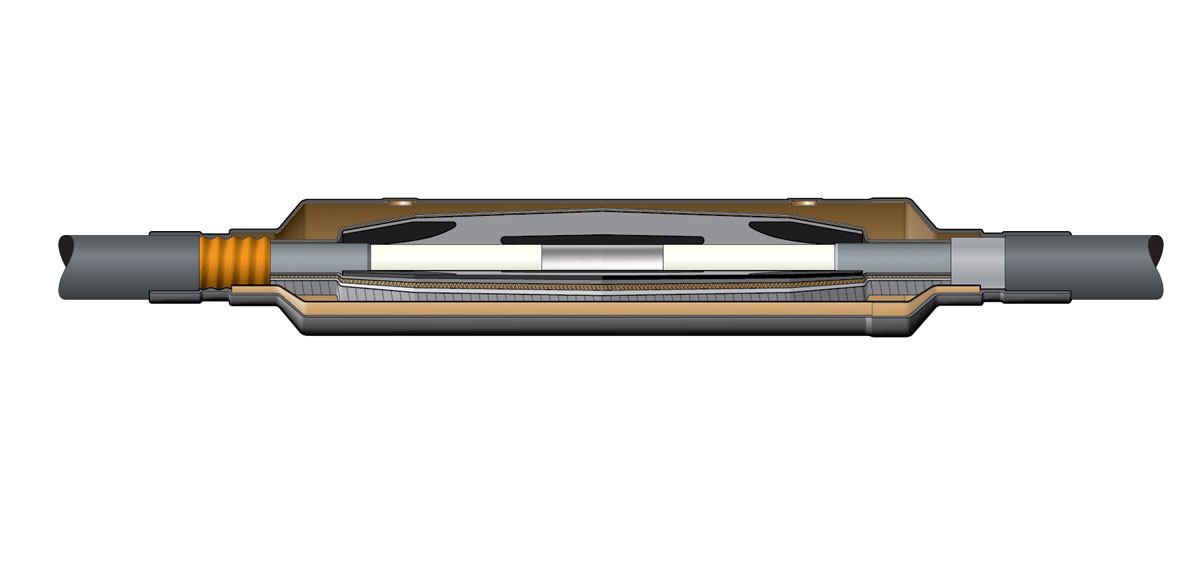

  • 3M™ Cold Shrink Joint SS-II with an in-line configuration, copper housing and heat shrink re-jacketing










One-piece cold shrink joint body with integrated electrode and stress control device to minimize electrical stress
Resin Compound
Copper Housing
Shear Bolt Connector
Heat Shrinkable Outer Protection

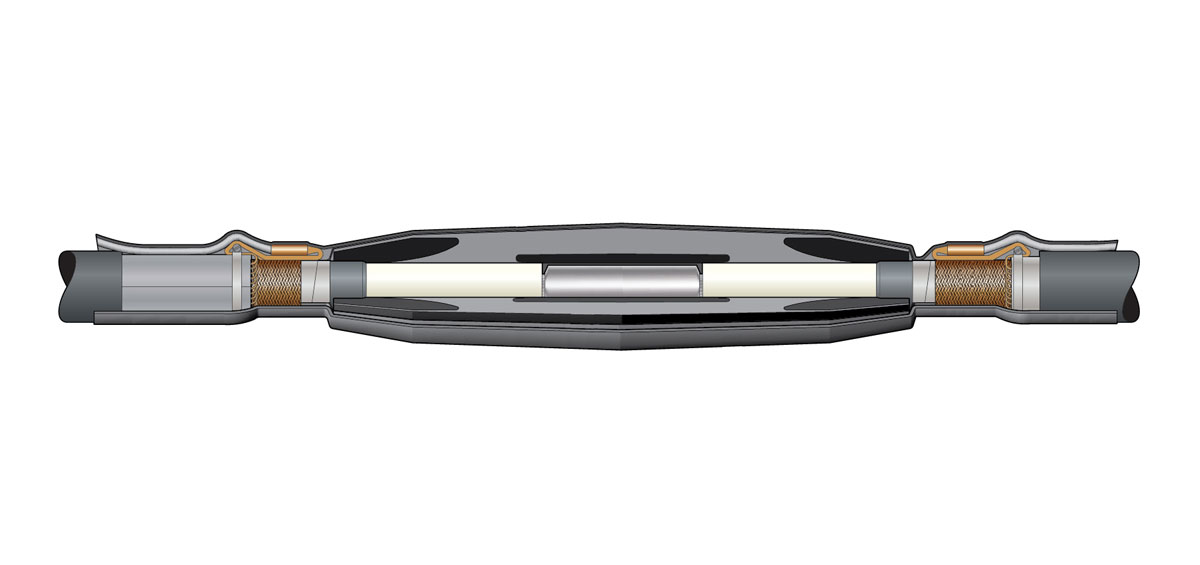

  • 3M™ Cold Shrink Joint SC-II with a cross bond configuration and cold shrink or heat shrink jacket











One-piece cold shrink joint body with integrated electrode and stress control device to minimize electrical stress

Copper mesh take provides concentric metal shielding around the joint

Cold Shrink or Heat Shrinkable Outer Protection

Grounding Connection

Shear Bolt Connector

  • *Contact 3M for additional Primary Insulation O.D. Ranges or specific cable configurations
